ICF machine, EPS Insulated concrete forms machine ,ICF panel machine , ICF block machine , ICF construction panel machine

FOB Reference Price:Get Latest Price
US $1-100,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
EPS
Model Number:
XL-ICF1400
Color:
Gray
weight:
5000 KG
workers:
1 worker / set
quality certification:
ISO 9001:2008
technology partner:
Tsinghua university
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.machine body packing : strech film
2.machine spare parts : wooden box packing
Port
Xingang Port , Tianjin ,China
Lead Time :
50 working days after deposit payment

Specifications

ICF panel is used to build houses
advantage:
1. cooperate with Tsinghua university
2.offer complete ICF plant solution

 company introduction :

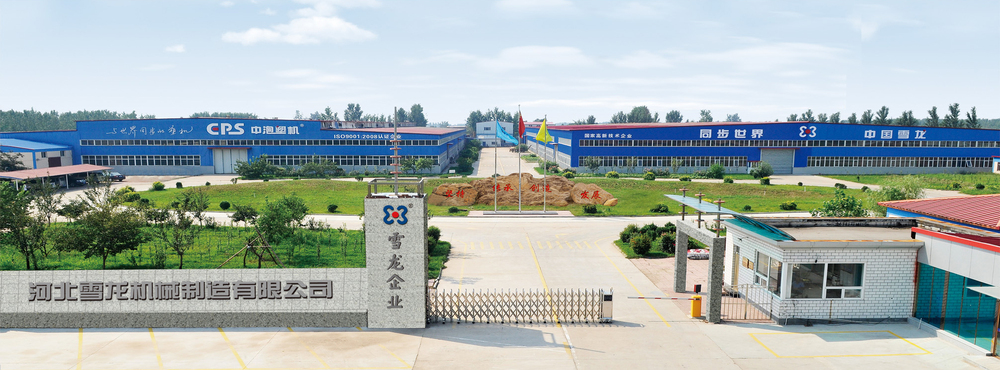

Xuelong company located in Shijiazhuang City , near Beijing , has been a big group including 10 independent corporate enterprises and has runned for totally 20 years .main products are ICF panel production line , EPS panel equipment .  Xuelong company has been Hebei  residential industrialization base , leading ICF panel construction technology leader in China










 Introduction of ICF panel construction :










Insulating concrete form or insulated concrete form (ICF) is a system of formwork for reinforced concrete usually made with a rigid thermal insulation that stays in place as a permanent interior and exterior substrate for walls, floors, and roofs. The forms are interlocking modular units that are dry-stacked (without mortar) and filled with concrete. The units lock together somewhat like Legobricks and create a form for the structural walls or floors of a building. ICF construction has become commonplace for both low rise commercial and high performance residential construction as more stringent energy efficiency and natural disaster resistant building codes are adopted.



Introduction for XL-ICF1400 serious ICF panel machine :



XL-ICF 1400 serious ICF wall machine is reseach and designed by the best construction machanical engineers design team based advacned international ICF panel construction technology , and lead the trend of  housing industrialization  in China . Cooperate with Tsinghua university and China Mining University  and other scientific research institution .



The complete ICF panel wall machine / production line includes that :



(1). EPS pre-expander machine



(2). EPS beads aging silo and steam tubes .



(3). ICF panel molding machine



(4) ICF panel molds



(5).  steam boiler and stam tank



(6). air compressor and air tank





Main points For ICF panel production factory setting :



(1) workshop area need :  1500 - 2000 square meters .



(2) workers need for each production shift : 12 workers totally



(3)  Each square meter of ICF panel production cost is 9 USD  .



(4) EPS density scope :  15 - 35 kg/m3





ICF panel machine / production line patent technologies certificates



                           .jpg







ICF panel production line / machine trademark :



                                                                                    - .jpg







 ICF panel production line / machine manufacturing condition :

















ICF panel production process :

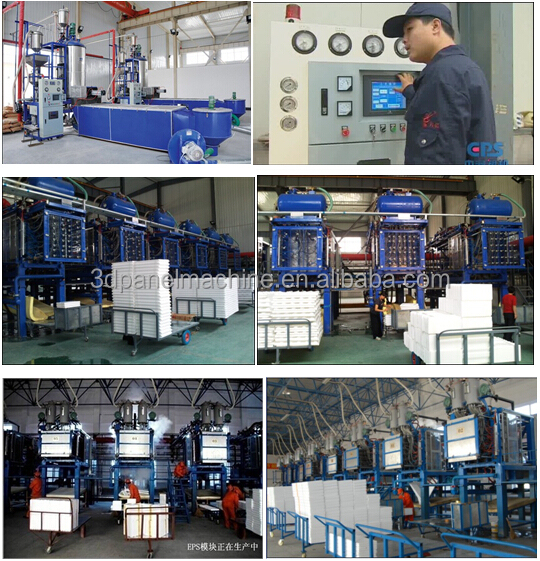

♦ XL-ICF1400 serious ICF machine working condition :

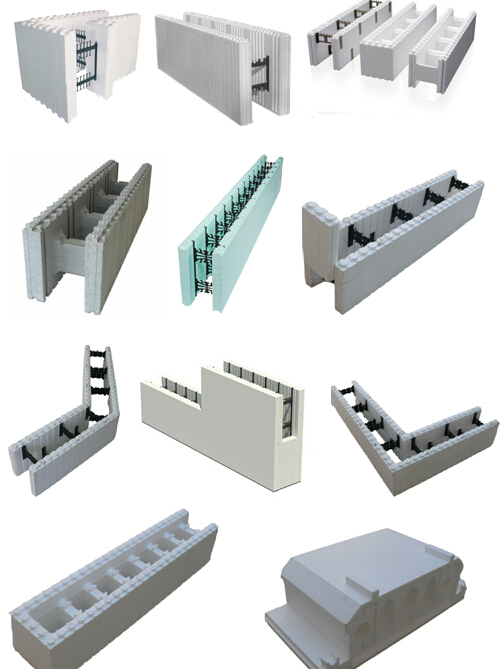

 ICF  panel ready products of XL-ICF 1400  panel machine :

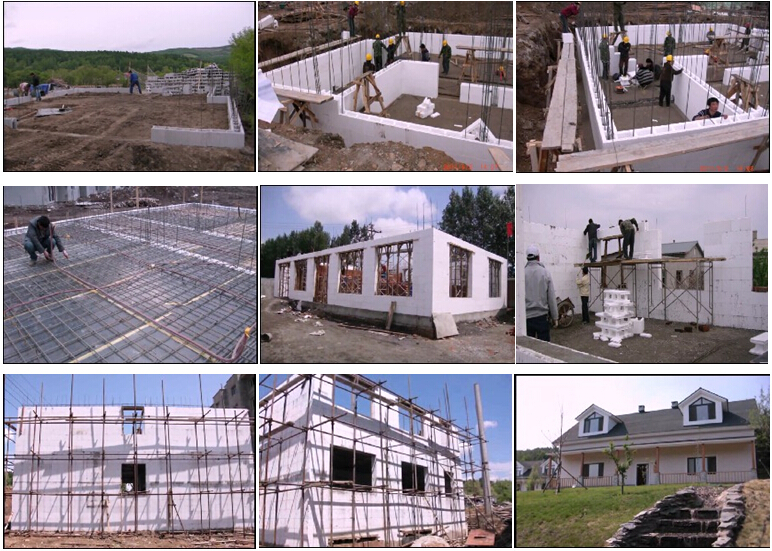

ICF panel construction site photos:












ICF panel machine / production line Packing before delivery



        It accept stretch film packing for machine bodyand wooden packing for the ICF panel production line parts












♦   attend canton fair in Guangzhou ,China











♦ Contact information  and  D bar code for XL-ICF 1400  serious ICF panel machine





                           KL4WY38N}033[W%K%_I{1KP.jpg   1419516933.jpg
