3D panel machine , 3D wire mesh panel machine , 3D panel construction plant

FOB Reference Price:Get Latest Price
US $1-100,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
EPS
Model Number:
XL-ZH1200
Color:
Blue
weight:
4000 KG
Power:
75 KW
workers:
4 workers / set
capacity:
350 m2 in 8 hours
quality certification:
ISO 9001:2008
technology partner:
Tsinghua university
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.machine body packing : strech film
2.machine spare parts : wooden box packing
Port
Xingang Port , Tianjin ,China
Lead Time :
50 working days after deposit payment

Specifications

3D panel is used to build houses
advantage:
1. cooperate with Tsinghua university
2.offer complete 3D panel plant solution

 company introduction :



Xuelong company located in Shijiazhuang City , near Beijing , has been a big group including 10 independent corporate enterprises and has runned for totally 20 years .main products are 3D panel production line , EPS panel equipment , ICF construction panel plant  .  Xuelong company has been Hebei  residential industrialization base , leading 3D panel construction technology leader in China



Xuelong company is cooperating with Tsinghua university for precast construction  industry zone , total invest 1.5 billion USD for total zone , total area 1500000 m2 .

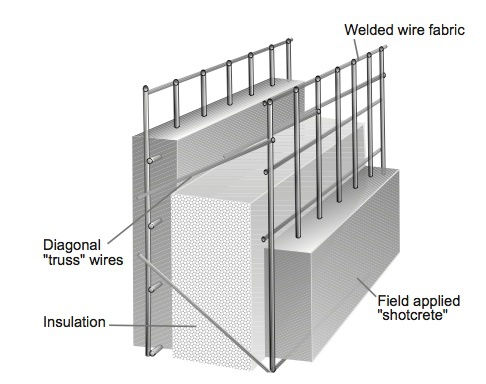

 Introduction of 3D wire mesh  panel construction :







3D Panel is a unique and effective way to easily create a strong insulated concrete building or wall. 3D Panels are used in every type of concrete structure because of the flexibility of design and ease of use. Thousands of structure and walls have been built around the world with 3D panels. Many of them use the panel for all elements of the structure including walls, floors, stairs and trim. 3D Panel is used for affordable housing all the way to multi-million dollar housing. Residential, commercial, institutional multi-story all can be created easily with this remarkable code-approved method.

In construction building , 3D panel could used as  exterior wall , interior wall,roof panel , stair block and so on



Introduction for XL-ZH1200 serious 3D panel production line :



XL-PC1200 serious 3D wall production line is reseach and designed by the best construction machanical engineers design team based advacned international 3D panel construction technology , and lead the trend of  housing industrialization  in China . Cooperate with Tsinghua university and China Mining University  and other scientific research institution .



The complete 3D panel wall machine / production line includes that :



(1). EPS pre-expander machine



(2). EPS block molding machine



(3). EPS block cutting machine



(4).  EPS aging silo and steam & air tubes



(5). wire mesh welding machine



(6). 3D wire mesh panel welder machine



(7). steam boiler and steam tank



(8).  air compressor and air tank





Main points For 3D panel production factory setting :



(1) workshop area need :  1500 - 2000 square meters .



(2) workers need for each production shift : 12 workers totally



(3)  THe capacity of plant in a shift ( 8 hours ) is around 700 square meters



(4)  Each square meter of 3D panel production cost is 5 USD  .  ( panel size : length 3m , width 1.3m , EPS thickness 5 cm )







3D panel machine / production line patent technologies certificates













♦ precast concrete machine line trademark :











 3D panel machine line manufacturing condition :

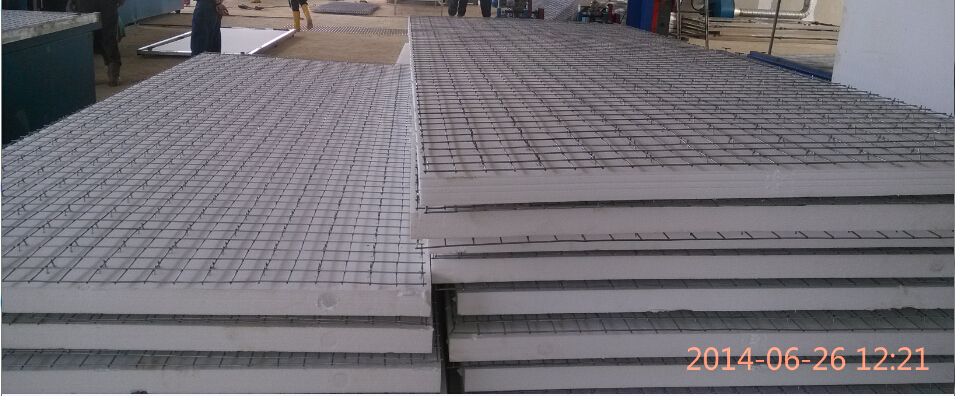

 3D panel ready products of XL-ZH1200 production line :

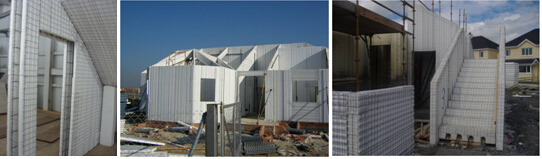

♦ 3D panel construction system :













♦ 3D panel machine line Packing before delivery



      It accept stretch film packing for machine bodyand wooden packing for the 3D panel production line parts













♦   attend canton fair in Guangzhou ,China











♦  XL-ZH1200 serious 3D panel  wall machine video link on internet :



        http://v.youku.com/v_show/id_XMjI1NTQyMDM2.html





Contact information  and  D bar code for XL-ZH1200  serious 3D panel wall machine / machinery
